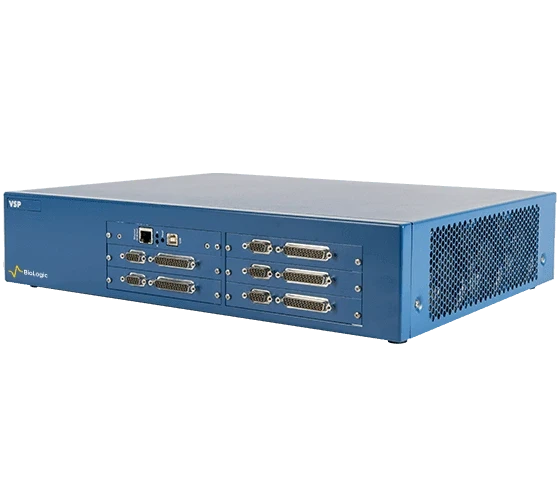

VSP
A five-slot modular workstation for parallel measurements and expansion of existing VSP setups.
Essential
Technical overview
- Channel capacity
- 5
- Base current / channel
- ±400 mA
- Voltage
- 20 V compliance
- EIS frequency range
- 10 µHz–1 MHz, optional
- Software
- EC-Lab
The VSP-specific maximum is ±400 mA despite the general 1 A wording on the manufacturer page. EIS is optional. The internal 4 A booster occupies two slots and requires a control board.
Plan the configuration
For new multichannel installations, compare the VSP-3e and its eight-slot, 1 A configuration. Installed boards determine the number of independent channels.
- Optional EIS module
- Internal 4 A booster: two slots and a control board
- Compatible external current boosters
Describe the cell, measurement method and number of parallel experiments. Include current and voltage requirements, EIS, low-current sensitivity and accessories when requesting a quotation.
Software
EC-Lab® →Manufacturer source checked: 2026-09-15
